Mybatis 逆向工程


一、导入 POM 文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.ktf</groupId>
    <artifactId>mybatis-generator</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.6</version>
        </dependency>
        <!-- mysql驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.21</version>
        </dependency>
        <!-- 日志处理 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <!-- 逆向工程 -->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.4.0</version>
        </dependency>
        <!-- 单元测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.1</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

二、编写 generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>

    <!--加载外部的properties文件-->
    <properties resource="jdbc.properties"/>

    <!--targetRuntime="MyBatis3Simple"表示生成简易版本,这里创建原始版本,参数为MyBatis3-->
    <context id="testTables" targetRuntime="MyBatis3">

        <commentGenerator>
            <!-- 是否去除自动生成的注释。true:是;false:否 -->
            <property name="suppressAllComments" value="false" />
        </commentGenerator>

        <!--数据库连接的信息:驱动类、连接地址、用户名、密码 -->
        <jdbcConnection driverClass="${jdbc.driver}"
                        connectionURL="${jdbc.url}"
                        userId="${jdbc.username}"
                        password="${jdbc.password}">
        </jdbcConnection>

        <!-- 默认false,把JDBC DECIMAL和NUMERIC类型解析为Integer,为true时把JDBC DECIMAL 和 NUMERIC 类型解析为java.math.BigDecimal -->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>

        <!-- targetProject:POJO类生成的位置 -->
        <javaModelGenerator targetPackage="com.ktf.pojo" targetProject="./src/main/java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
            <!-- 从数据库返回的值被清理前后的空格 -->
            <property name="trimStrings" value="true" />
        </javaModelGenerator>

        <!-- targetProject:mapper映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.ktf.mapper" targetProject="./src/main/resources">
            <!-- enableSubPackages:是否让 schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>

        <!-- targetPackage:mapper接口生成的位置 -->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.ktf.mapper" targetProject="./src/main/java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>

        <!-- 指定生成哪些数据库表,要和数据库中对应,不能写错了,这里以t_user表为例,可以写多个;domainObjectName是要生成的实体类名称-->
        <table schema="mybatis" tableName="t_user"/>
        <table schema="mybatis" tableName="t_role"/>

        <!-- 有些表的字段需要指定java类型
         <table schema="" tableName="">
            <columnOverride column="" javaType="" />
        </table> -->
    </context>

</generatorConfiguration>

三、编写 GeneratorSql 核心类

package com.ktf.generator;

import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.internal.DefaultShellCallback;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

/**
 * 逆向工程核心生成代码
 */
public class GeneratorSql {
    public void generator() throws Exception {
        List<String> warnings = new ArrayList<>();
        boolean overwrite = true;
        // 指定逆向工程配置文件
        String file = GeneratorSql.class.getResource("/generatorConfig.xml").getFile();
        File configFile = new File(file);
        ConfigurationParser cp = new ConfigurationParser(warnings);
        Configuration config = cp.parseConfiguration(configFile);
        DefaultShellCallback callback = new DefaultShellCallback(overwrite);
        MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
        myBatisGenerator.generate(null);
    }
    // 执行main方法以生成代码
    public static void main(String[] args) {
        try {
            GeneratorSql generatorSql = new GeneratorSql();
            generatorSql.generator();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

}

四、编写log4j.properties

# Set root category priority to INFO and its only appender to CONSOLE.
#log4j.rootCategory=INFO, CONSOLE debug info warn error fatal
log4j.rootCategory=debug, CONSOLE

# CONSOLE is set to be a ConsoleAppender using a PatternLayout.
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=%d{ISO8601} %-6r [%15.15t] %-5p %30.30c %x - %m\n

五、编写 jdbc.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql:///mybatis?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT
jdbc.username=root
jdbc.password=root

六、编写 mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>

    <!--加载外部的properties文件-->
    <properties resource="jdbc.properties"/>

    <!--给实体类的全限定类名给别名-->
    <typeAliases>
        <!--给单独的实体起别名-->
        <!--  <typeAlias type="com.lagou.pojo.User" alias="user"></typeAlias>-->
        <!--批量起别名:该包下所有的类的本身的类名:别名还不区分大小写-->
        <package name="com.ktf.pojo"/>
    </typeAliases>

    <!--environments:运行环境-->
    <environments default="development">
        <environment id="development">
            <!--当前事务交由JDBC进行管理-->
            <transactionManager type="JDBC"/>
            <!--当前使用mybatis提供的连接池-->
            <dataSource type="POOLED">
                <property name="driver" value="${jdbc.driver}"/>
                <property name="url" value="${jdbc.url}"/>
                <property name="username" value="${jdbc.username}"/>
                <property name="password" value="${jdbc.password}"/>
            </dataSource>
        </environment>
    </environments>

    <!--引入映射配置文件-->
    <mappers>
        <package name="com.ktf.mapper"/>
    </mappers>


</configuration>

七、数据库导入表

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80020
 Source Host           : localhost:3306
 Source Schema         : mybatis

 Target Server Type    : MySQL
 Target Server Version : 80020
 File Encoding         : 65001

 Date: 12/06/2022 12:07:24
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for t_role
-- ----------------------------
DROP TABLE IF EXISTS `t_role`;
CREATE TABLE `t_role`  (
  `id` int(0) NOT NULL AUTO_INCREMENT,
  `rolename` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_role
-- ----------------------------

-- ----------------------------
-- Table structure for t_user
-- ----------------------------
DROP TABLE IF EXISTS `t_user`;
CREATE TABLE `t_user`  (
  `id` int(0) NOT NULL AUTO_INCREMENT,
  `username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `age` int(0) NULL DEFAULT NULL,
  `address` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_user
-- ----------------------------
INSERT INTO `t_user` VALUES (2, '张三', '123', 14, '深圳');
INSERT INTO `t_user` VALUES (3, '李四', '234', 20, '北京');

SET FOREIGN_KEY_CHECKS = 1;

八、运行 GeneratorSql

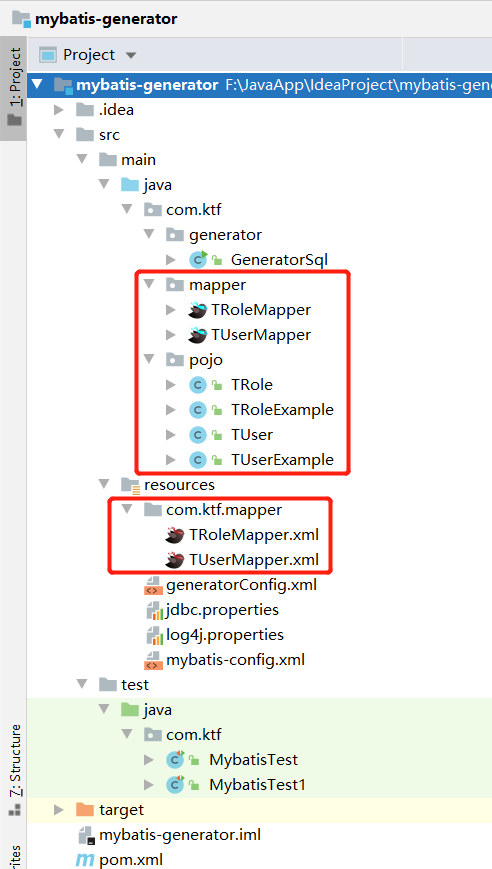

运行该类之后就会生成下列文件:

image-20220612121707753

主要就是实体类、Mapper接口、Mapper映射文件,实体类中含有Example 的就是带条件进行CRUD的时候需要使用到的,下面会详解。

九、测试

不带条件的测试:

package com.ktf;

import com.ktf.mapper.TUserMapper;
import com.ktf.pojo.TUser;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;

import java.io.IOException;
import java.io.InputStream;
import java.util.List;

//Mybatis的测试
public class MybatisTest {

    //定义 SqlSession
    private SqlSession sqlSession = null;

    //定义 TUserMapper对象
    private TUserMapper mapper = null;

    @Before//在测试方法执行之前执行
    public void getSqlSession(){
        //1、加载 mybatis 全局配置文件
        InputStream is = MybatisTest.class.getClassLoader().getResourceAsStream("mybatis-config.xml");
        //2、创建SqlSessionFactory对象
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);
        //3、根据 sqlSessionFactory 产生session
        sqlSession = sqlSessionFactory.openSession();
        //4、创建Mapper接口的的代理对象,getMapper方法底层会通过动态代理生成TUserMapper的代理实现类
        mapper = sqlSession.getMapper(TUserMapper.class);
    }

    @After//在测试方法执行完成之后执行
    public void destroy() throws IOException {
        sqlSession.commit();
        sqlSession.close();
    }

    //查询所有用户信息
    @Test
    public void selectAllUser(){
        // 传入null表示查询所有
        List<TUser> tUsers = mapper.selectByExample(null);
        for (TUser tUser : tUsers) {
            System.out.println(tUser.toString());
        }
    }

    //根据用户id查询用户
    @Test
    public void selectByUserId(){
        TUser tUser = mapper.selectByPrimaryKey(1);
        System.out.println(tUser);
    }

    //添加用户信息
    @Test
    public void insertUser(){
        TUser tUser = new TUser();
        // tUser.setId(3);
        tUser.setUsername("王五");
        tUser.setPassword("234");
        tUser.setAge(20);
        tUser.setAddress("上海");
        int i = mapper.insertSelective(tUser);
        System.out.println(i>0?"添加成功":"添加失败");
    }

    //更新用户信息
    @Test
    public void updateUser(){
        TUser tUser = new TUser();
        //这里要设置id才能修改成功,否则不知道修改哪一条数据
        tUser.setId(2);
        tUser.setAge(14);
        tUser.setAddress("深圳");
        int i = mapper.updateByPrimaryKeySelective(tUser);
        System.out.println(i>0?"修改成功":"修改失败");
    }

    //删除用户信息
    @Test
    public void deleteUser(){
        int i = mapper.deleteByPrimaryKey(3);
        System.out.println(i>0?"删除成功":"删除失败");
    }
}

带条件的测试:

package com.ktf;

import com.ktf.mapper.TUserMapper;
import com.ktf.pojo.TUser;
import com.ktf.pojo.TUserExample;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;

import java.io.IOException;
import java.io.InputStream;
import java.util.List;

// Mybatis的测试
public class MybatisTest1 {

    //定义 SqlSession
    private SqlSession sqlSession = null;

    //定义 UserMapper对象
    private TUserMapper mapper = null;

    @Before//在测试方法执行之前执行
    public void getSqlSession(){
        //1、加载 mybatis 全局配置文件
        InputStream is = MybatisTest1.class.getClassLoader().getResourceAsStream("mybatis-config.xml");
        //2、创建SqlSessionFactory对象
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(is);
        //3、根据 sqlSessionFactory 产生session
        sqlSession = sqlSessionFactory.openSession();
        //4、创建Mapper接口的的代理对象,getMapper方法底层会通过动态代理生成UserMapper的代理实现类
        mapper = sqlSession.getMapper(TUserMapper.class);
    }

    @After//在测试方法执行完成之后执行
    public void destroy() throws IOException {
        sqlSession.commit();
        sqlSession.close();
    }

    //模糊查询用户信息
    @Test
    public void selectUserLike(){
        TUserExample example = new TUserExample();
        TUserExample.Criteria criteria = example.createCriteria();
        //模糊条件
        criteria.andUsernameLike("%张%");
        // sql语句相当于:select * from t_user WHERE ( username like ? )
        List<TUser> tUsers = mapper.selectByExample(example);
        for (TUser tUser : tUsers) {
            System.out.println(tUser);
        }
    }

    //查询年龄在18-30岁之间的用户信息
    @Test
    public void selectUserBetween(){
        TUserExample example = new TUserExample();
        TUserExample.Criteria criteria = example.createCriteria();
        //Between条件
        criteria.andAgeBetween(13,19);
        example.or(criteria);
        example.setDistinct(true);
        List<TUser> tUsers = mapper.selectByExample(example);
        for (TUser tUser : tUsers) {
            System.out.println(tUser);
        }
    }

    //查询用户名A或B
    @Test
    public void selectUserOr(){
        TUserExample example = new TUserExample();
        TUserExample.Criteria criteria1 = example.createCriteria();
        criteria1.andUsernameEqualTo("张三");
        TUserExample.Criteria criteria2 = example.createCriteria();
        criteria2.andUsernameEqualTo("王五");
        //将criteria2条件拼接在 or 关键字字后面
        example.or(criteria2);
        // sql语句相当于:select * from t_user WHERE ( username = ? ) or( username = ? )
        List<TUser> tUsers = mapper.selectByExample(example);
        for (TUser tUser : tUsers) {
            System.out.println(tUser);
        }
    }

    //根据用户名删除用户
    @Test
    public void deleteUserExample(){
        TUserExample example = new TUserExample();
        TUserExample.Criteria criteria = example.createCriteria();
        criteria.andUsernameEqualTo("张五");
        // sql语句相当于:delete from t_user WHERE ( name = ? )
        int i = mapper.deleteByExample(example);
        System.out.println(i>0?"删除成功":"删除失败");
    }
}

逆向工程生成的条件查询中含有很多条件可以设置,看需求使用哪些。


文章作者: Sky
版权声明: 本博客所有文章除特別声明外,均采用 CC BY 4.0 许可协议。转载请注明来源 Sky !
  目录
